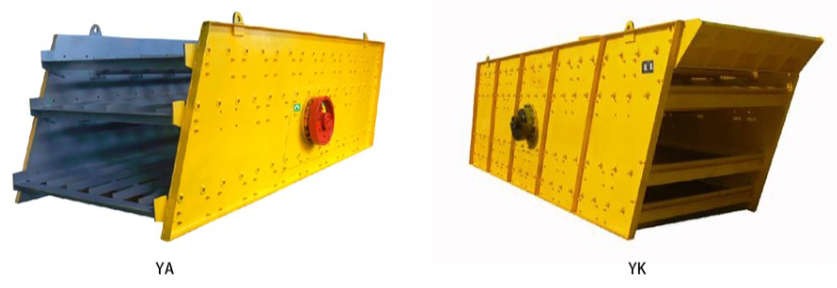

本系列产品为圆运动振动，振幅强弱可调节；物料筛淌线长，多层筛分，各档规格筛选清晰，筛分效率好；适合采矿、砂石等领域的筛分作业。
型号
Model | 筛面层数
Screen Deck | 筛网面积
Screen Area
(m²) | 筛孔尺寸
Screen Size
(mm) | 筛面规格
Screen Specifications
(mm) | 最大进料边长
Max.Feed Edge
(mm) | 处理能力
Processing Capacity
(t /h) | 振动频率
Vibration Frequency
(r/min) | 双振幅
Double Amplitude
(mm) | 电动机功率
Motor Power
(kw) | 重量
Weight
(t) | 外形尺寸
OverallDimension
(L×W×H)
(mm) |
| 2YA123 0 | 2 | 3.7 | 18323 | 1220×3050 | 200 | 33147 | 800-970 | 8 | 5.5 | 2.34 | 3502×2127×1
868 |
| 3YA123 0 | 3 | 3.7 | 29281 | 1220×3050 | 200 | 30-90 | 800-970 | 8 | 7.5 | 3.05 | 3538×2168×2
245 |
| 2YA154 2 | 2 | 6.1 | 18384 | 1500×4200 | 200 | 50-180 | 970 | 8 | 15 | 5.33 | 5081×2573×2
660 |
| 2YA154 8 | 2 | 7.1 | 18384 | 1500×4800 | 200 | 50-190 | 970 | 8 | 15 | 5.5 | 5745×2573×3
367 |
| 3YA154 8 | 3 | 71 | 18384 | 1500×4800 | 200 | 50-200 | 970 | 8 | 15 | 6.08 | 5909×2573×
3367 |
| 4YA154 8 | 4 | 7.1 | 18384 | 1500×4800 | 200 | 50-200 | 970 | 8 | 18.5 | 6.75 | 5909×2573×
3845 |
| 3YA184 8 | 3 | 8.7 | 29342 | 1800×4800 | 200 | 50-250 | 970 | 8 | 18.5 | 6.93 | 6072×2970×3
366 |
| 4YA184 8 | 4 | 8.7 | 29342 | 1800×4800 | 200 | 50-260 | 970 | 8 | 22 | 7.1 | 6072×2970×3
845 |
| 2YA18 60 | 2 | 10.8 | 29342 | 1800×6000 | 200 | 50-280 | 970 | 8 | 18.5 | 7.2 | 6965×2971×3
276 |
| 3YA186 0 | 3 | 10.8 | 29342 | 1800×6000 | 200 | 50-300 | 970 | 8 | 18.5 | 7.7 | 7129×2971×37
44 |
| 4YK186 0 | 4 | 10.8 | 5-100 | 1800×6000 | 400 | 80-320 | 850 | 8 | 22 | 8.2 | 6417×3439×4
276 |
| 2YK21 60 | 2 | 12.8 | 29342 | 2100×6000 | 400 | 100-330 | 850 | 8 | 30 | 7.5 | 7005×3470×3
654 |
| 3YK216 0 | 3 | 12.8 | 5-100 | 2100×6000 | 400 | 100-380 | 850 | 8 | 45 | 8.2 | 7172×3528×41
33 |
| 4YK216 0 | 4 | 12.8 | 5-150 | 2100×6000 | 400 | 120-430 | 850 | 8 | 45 | 10.3 | 7326×3545×4
523 |
| 2YK24 60 | 2 | 14.4 | 5-150 | 2400×6000 | 400 | 100-380 | 850 | 8 | 37 | 8.5 | 7010×3796×3
654 |
| 3YK24 60 | 3 | 14.4 | 5-150 | 2400×6000 | 400 | 160-450 | 850 | 8 | 45 | 9.2 | 7176×3816×41
33 |
| 4YK24 60 | 4 | 14.4 | 5-150 | 2400×6000 | 400 | 160-450 | 850 | 8 | 55 | 12 | 7328×3896×4
523 |
| 2YK30 70 | 2 | 21 | 5-150 | 3000×7000 | 400 | 150-600 | 850 | 8 | 18.5×2 | 16 | 7970×4465×4
764 |
| 3YK30 70 | 3 | 21 | 5-150 | 3000×7200 | 400 | 150-650 | 850 | 8 | 22×2 | 17 | 8225×4582×
4822 |
| 3ZK185 4 | 3 | 9.8 | 18384 | 1800×5400 | 200 | 80-120 | 970 | 5 | 5.5×4 | 7.5 | 5621×2488×2
125 |
